Drive type

AC

Brand

SEC

Control

VVVF

MOQ

1 unit

Load

400-2500kg

Place of origin

China

Speed

3.0m/s - 7.0m/s

Price

Contact us

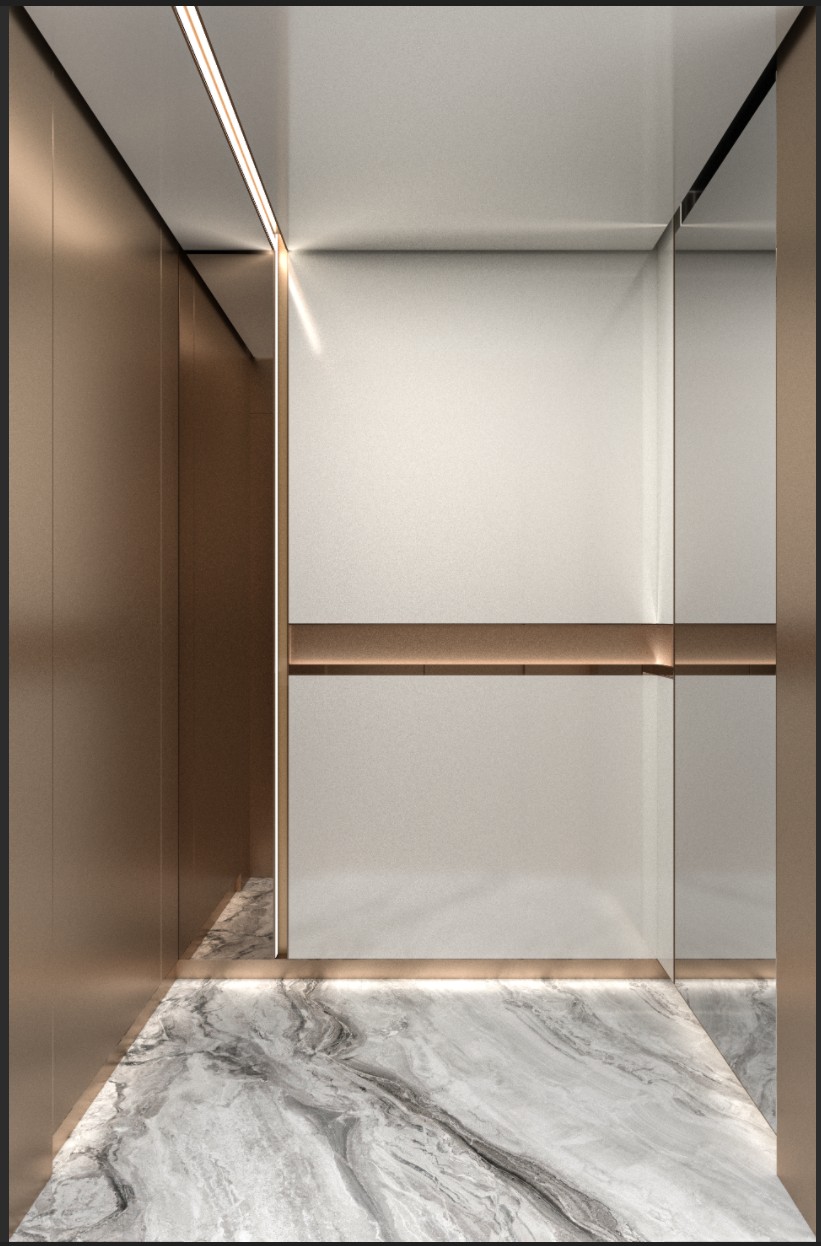

Car wall

Stainless steel hairline

Warranty

18 months

Car door

Stainless steel hairline

Delivery port

Ningbo or Shanghai

Ground landing door

Stainless steel hairline

Payment terms

EXW, FOB, CIF by T/T

Typical landing door

Painted steel plate

Produce time

Standard 20 working days

Car ceiling

Painted steel plate, LED light

Usage

Residential, office, commercial

Permanent Magnet Traction Machine

1. Energy Saving & Environmental Protection
Specially designed for high-speed elevators, saving more than 45% energy compared with geared traction machines.

2. Comfortable Running
Equipped with imported brakes to provide sufficient safety for high-speed operation. Imported rotary encoder ensures the elevator stops at the best speed every time, delivering highly comfortable passenger performance.

3. Low Noise
Equipped with imported brakes, 5–10 dB lower than traditional brakes. The machine bedplate is flexibly installed to effectively reduce the impact of start-stop vibration.

Intelligent Control System

Core Advantages of the High-Speed Elevator Machine

1. 5G Intelligent Connectivity
Adopts 5G technology in the control system, connecting the control cabinet with components. Processor speed is increased by 67% compared with ordinary control cabinets. The transmission bus is upgraded to CAN-BUS, building a stronger foundation for intelligent transmission and ensuring more stable operation.

2. Integrated Network Terminal
The control cabinet itself functions as a network terminal with built-in network transmission, eliminating the need for an additional data processing terminal. This reduces the user's network hardware requirements and effectively saves costs.

3. Precise Control
Dual 32-bit CPU configuration with dual safety protection for both the control processor and drive processor, providing the highest level of safety for elevator operation.

4. Comfortable Experience
New load sensor-less start compensation technology delivers excellent start-up comfort.

5. Efficient Operation
Advanced direct stopping technology and more reasonable group control ladder logic are adopted to improve elevator carrying efficiency and save waiting time.

Door system

1. Safety & Efficiency
Double motor and double door knife configuration. Safe, reliable, low noise, and highly efficient. Noise level only 50dB(A), shortest opening time 2S, and adapts to voltage fluctuation of ±20%. Electronic door lock effectively prevents door pulling on non-flat floors, ensuring passenger safety.

2. Science and Technology Intelligence
Powered by a 32-bit DSP core, adopting permanent magnet frequency conversion synchronous one-control and two-drive technology to control the speed of two motors. Under abnormal conditions, the power source is intelligently selected to adjust the door opening rhythm, effectively preventing the elevator from clamping people.

3. Waterproof Motor
High protection grade motor, tested and certified by the National Special Inspection Centre, with IP grade up to IP54.

4. Wind and Noise Reduction
Simple and compact maze-form structure. Enhanced resistance to wind pressure and reduced noise inside the car.

Frequently Asked Questions

1. What is the price?
Re: Please send your inquiry by email or WhatsApp, and we will reply as soon as possible. Company details and detailed project information would be highly appreciated.

2. How can I request a product catalog?
Re: Printed catalogs are free of charge, but shipping cost applies. PDF catalogs can also be sent by email or WeTransfer.

3. What are your payment terms?
Re: T/T (bank transfer).

4. What is the delivery time?
Re: It depends on your order list and quantity; standard products are delivered within 12 working days after order confirmation.

5. What about installation and maintenance?
Re: We ship the installation and maintenance manual with the elevator. We recommend engaging a reputable local company for installation and future maintenance. For technical assistance, please contact us by email or phone. A technician can be dispatched to your site if needed.

6. What are the shipping terms and pricing?
Re: EXW / FOB / CIF / CFR are all acceptable. We have a reliable freight forwarder to arrange shipping for you.

7. Why choose us?
A. Quality inspection before every shipment, ensuring defect-free products.
B. Certified quality, fast response, and quick technical support and on-site assistance for key projects.
C. High capacity and stable supply.
D. Competitive price.

**For more details, please contact us.**
